TouchNetix offers versatile touch sensors for standard and harsh environments, supported by aXiom technology for precise, reliable performance. Sensors are available in standard sizes, but custom designs are available upon request.
Customers can also purchase any combination of our sensor components (sensor, lens and control board), allowing maximum flexibility for product development.
TouchNetix's TouchHub2 software is also provided to customers to ensure easy evaluation, setup, tuning, integration, and testing of products. (Applies to purchases of aXiom control boards/EVKs)
Key Features
-
Signal & EMC: 80dB SNR, low drive voltage for reduced RF emissions, industry-leading EMC performance.
-
Touch & Interaction: 16-bit multi-touch, 3D sensing, glove/water operation, force sensing, Pilot ID, and much more. All aXiom features included.
-
Integration: Supports thick/curved lenses, air gaps, & narrow edge margins.
-
Performance & Connectivity: Up to 250 Hz reporting rate, reference drivers for Windows™/Linux, USB mini-B & ZIF FFC connectors.
-
Software: TouchHub2 for Windows™, plus mouse emulation for legacy systems.
7.0"-24" Standard Sensors
Custom Sensors
Available on request
Product Flexibility
Can purchase any combination of sensor, lens, and control board
Glass & PET Sensors
In a variety of sizes/aspect ratios
All aXiom Features Included
High Report Rate
Up to 250 Hz
Supported by TouchHub2
TouchNetix's Windows-based tuning/evaluation software

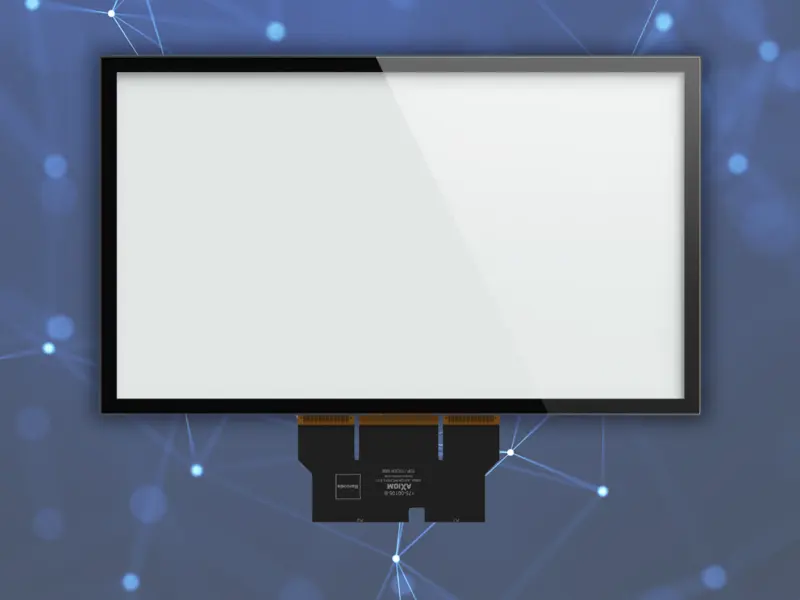

Glass Sensors
Our glass sensors are constructed with two-layers of ITO on 0.7mm glass substrates, providing an extremely robust structure with excellent optical properties. These sensors are optically bonded to a chemically strengthened 1.1mm glass cover lens, providing a robust and fully tested solution which is ready for product integration. If required, the lens can be up to 10mm thick.
Each module kit includes a sensor, lens, FPC, and the necessary hardware. When ordering, please refer to the appropriate kit part number listed in the table.
If you only need a sensor and control board (CB), please reach out to our sales team directly.
PET Sensors
Our PET sensors are constructed with two layers of ITO-coated and etched PET sheets that are bonded together with a passive FPC, producing a 0.45mm thick, high-quality and resilient sensor.
These sensors are available either on their own or optically bonded to a standard 1.1mm glass lens. If required, they can also be bonded to lenses up to 10mm thick.
Each module kit includes a sensor, lens, FPC, and the necessary hardware. When ordering, please refer to the appropriate kit part number listed in the table.
If you only need a sensor and control board (CB), please reach out to our sales team directly.
