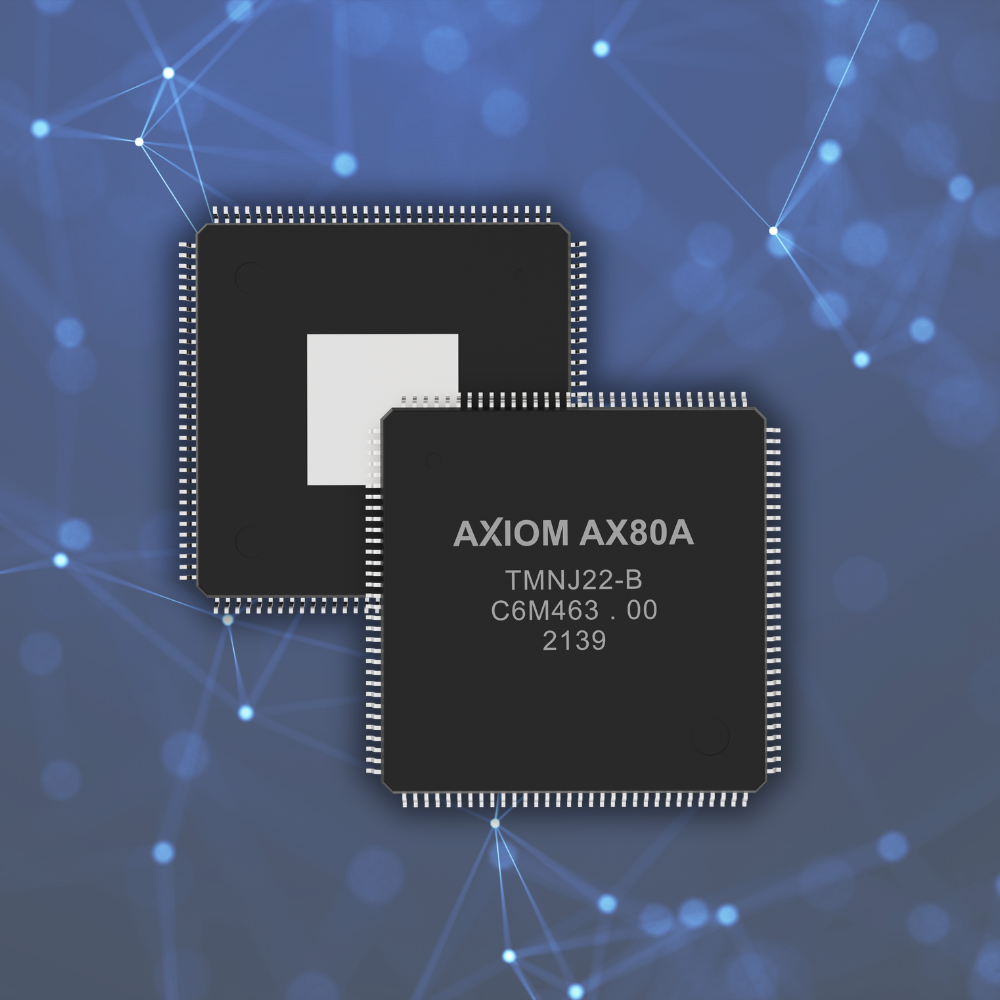

The AX80A is an automotive-qualified capacitive touch controller supporting up to 12” displays/surfaces with ultra-high SNR (>80dB) and 80 sensing channels. Available in both 2D and 3D versions, it enables all aXiom advanced touch and force features, including force sensing, Pilot ID, 3D sensing, TactoSense, and much more!
Explore the datasheets below to find out more.
Up to 12" Displays or Surfaces
80 Sensing Channels
Plus 4 additional dedicated force sensing channels
Package Type
Available in QFP128 Package
Single-Chip Technology
All aXiom features integrated in single device
Automotive Qualified
AEC Q-100 Qualified
ASIL-B Ready Certified
SPI & I2C
-40°C to 105°C
Ultra-High SNR
Multi-Touch Detection
With <10μm displacement
Thick & Non-Uniform Lenses
